Beschrijving

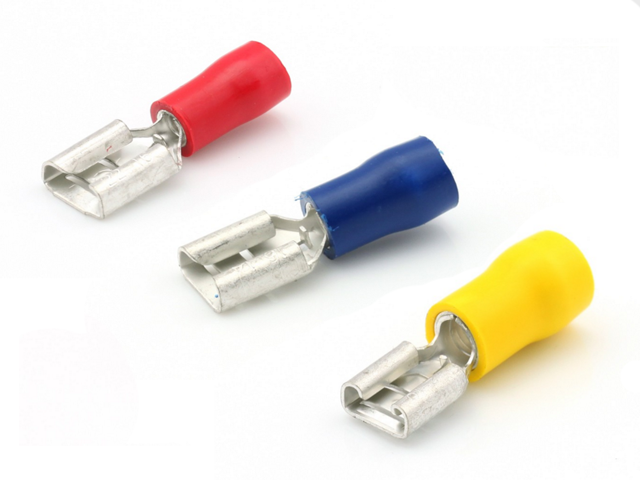

Vlakstekkerhuls 6,3mm
Vlakstekkerhuls 6,3mm, Vlakstekkerhulzen zijn leverbaar in verschillende kleuren en verschillende dikte diameters. Minimale afname is 5 stuks.
Vlakstekkerhuls 6,3mm Kleur Rood 541red
Vlakstekkerhuls 6,3mm Kleur Blauw 542blu
Vlakstekkerhuls 6,3mm Kleur Geel 43ylw
Vlakstekkerhuls 6,3mm Kleur Geel 43ylw
Specificaties Rood
Type kabelschoenen Female
Type Insulation Vinyl geisoleerd
Kabel diameter Rood (0.5-1.5 mm²)
Met Trekontlasting Ja
Max. Working Voltage 300 Volt
Kabelschoen Tab 6.3×0.8mm
Temperature Rating 75 degrees
Tabsize 6.8mm
Length ( L ) 21.5 mm
Diameter ( d2 ) Ø 4.7mm
Insulation Height ( E ) 10.5mm
Diameter ( D ) N/B
Material Vinyl
According requirements UL94V0
Type Insulation Vinyl geisoleerd
Kabel diameter Rood (0.5-1.5 mm²)
Met Trekontlasting Ja
Max. Working Voltage 300 Volt
Kabelschoen Tab 6.3×0.8mm
Temperature Rating 75 degrees
Tabsize 6.8mm
Length ( L ) 21.5 mm
Diameter ( d2 ) Ø 4.7mm
Insulation Height ( E ) 10.5mm
Diameter ( D ) N/B
Material Vinyl
According requirements UL94V0
Specificaties Blauw
Type kabelschoenen Female
Type Insulation Vinyl geisoleerd
Kabel diameter Blauw (1.5-2.5 mm²)
Met Trekontlasting Ja
Max. Working Voltage 300 Volt
Kabelschoen Tab 6.3×0.8mm
Temperature Rating 75 degrees
Tabsize 6.8mm
Length ( L ) 22.0 mm
Diameter ( d2 ) Ø 4.9mm
Insulation Height ( E ) 11.0mm
Material Vinyl
According requirements UL94V0
Type Insulation Vinyl geisoleerd
Kabel diameter Blauw (1.5-2.5 mm²)
Met Trekontlasting Ja
Max. Working Voltage 300 Volt
Kabelschoen Tab 6.3×0.8mm
Temperature Rating 75 degrees
Tabsize 6.8mm
Length ( L ) 22.0 mm
Diameter ( d2 ) Ø 4.9mm
Insulation Height ( E ) 11.0mm
Material Vinyl
According requirements UL94V0
Specificaties Geel
Type kabelschoenen Female
Type Insulation Vinyl geisoleerd
Kabel diameter Geel (4-6 mm²)
Met Trekontlasting Ja
Max. Working Voltage 300 Volt
Kabelschoen Tab 6.3×0.8mm
Temperature Rating 75 degrees
Tabsize 6.8mm
Length ( L ) 25.0 mm
Diameter ( d2 ) Ø 6.5mm
Insulation Height ( E ) 14.0mm
Diameter ( D ) N/B
Material Vinyl
According requirements UL94V0
Type Insulation Vinyl geisoleerd
Kabel diameter Geel (4-6 mm²)
Met Trekontlasting Ja
Max. Working Voltage 300 Volt
Kabelschoen Tab 6.3×0.8mm
Temperature Rating 75 degrees
Tabsize 6.8mm
Length ( L ) 25.0 mm
Diameter ( d2 ) Ø 6.5mm
Insulation Height ( E ) 14.0mm
Diameter ( D ) N/B
Material Vinyl
According requirements UL94V0
