Beschrijving

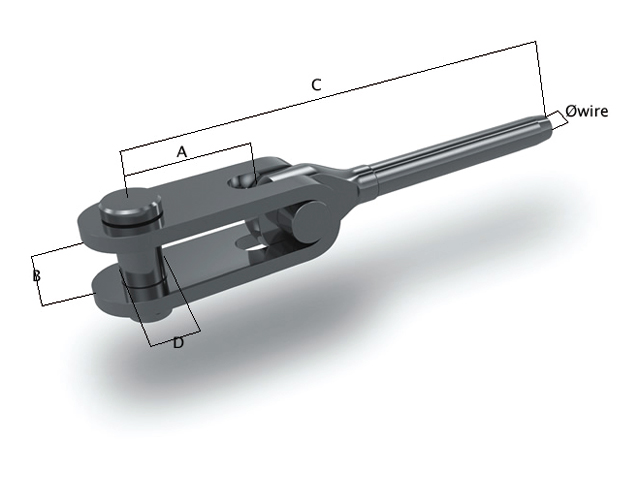

OS Toggleterminals RVS 316
OS Toggleterminals RVS 316 zijn leverbaar in verschillende afmetingen.
| Artikel | Draad Ø mm | D mm | A mm | B mm | C mm | Gewicht kg | Breekkracht daN |
|---|---|---|---|---|---|---|---|
| OS Toggleterminal 02304003 | 3 | 6,3 | 14,0 | 8,0 | 73,0 | 0,04 | 1200 |
| OS Toggleterminal 02304004 | 4 | 8,0 | 26,0 | 10,5 | 99,0 | 0,08 | 1550 |
| OS Toggleterminal 02304005 | 5 | 9,5 | 29,0 | 12,0 | 114,5 | 0,16 | 2350 |
| OS Toggleterminal 02304006 | 6 | 12,7 | 36,0 | 15,5 | 140,0 | 0,33 | 5100 |
| OS Toggleterminal 02304007 | 7 | 12,7 | 34,5 | 15,5 | 152,5 | 0,34 | 6500 |
| OS Toggleterminal 02304008 | 8 | 12,7 | 33,5 | 15,5 | 160,5 | 0,68 | 7800 |
| OS Toggleterminal 02304009 | 8 | 15,9 | 35,0 | 18,0 | 167,0 | 0,58 | 8550 |
| OS Toggleterminal 02304010 | 10 | 15,9 | 32,5 | 18,0 | 188,0 | 0,69 | 9400 |
